x X X X X
1029 Continued on the next page
*For this application the bushing inserts must be removed.
Replacement
Application Year Replaces O.D. x I.D. Pos. WPS# Color Bearing Snap Ring Bushing
SKI-DOO (cont’d... )
Grand Touring 500 ‘96-97 572043500 101mm (3.98) x .625” E 541-5018 Black 44-4100 12-4639
Grand Touring 580 ‘96 503112300 5.38 x 25mm D,B 541-5006 Black 44-5905 12-4638
Grand Touring SE ‘96 135mm (5.31) x 25mm D.B For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Grand Touring 500 ‘98-99 572018900 110mm (4.33) x 25mm E 541-5017 Black 44-5905 12-4638
Grand Touring 583 ‘98-99 503112300 5.38 x 25mm D,B 541-5006 Black 44-5905 12-4638
135mm (5.31) x 25mm D,B For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Grand Touring 500, 600 ‘01 572043500 101mm (3.98) x .625” E 541-5018 Black 44-4100 12-4639
Grand Touring 700, 800 ‘01 503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Grand Touring 500, 600, 700 ‘02-03 503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Grand Touring 583 ‘97 572018900 110mm (4.33) x 25mm E 541-5017 Black 44-5905 12-4638
Grand Touring 700 SE ‘97 503112300 5.38 x 25mm D,B 541-5006 Black 44-5905 12-4638
135mm (5.31) x 25mm D,B For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Grand Touring 600, 1200 LE, SE ‘10-12 503191316 141mm (5.55”) x 20mm B 541-5005 Black 44-4152 12-4636
503191313 141mm (5.55”) x 20mm B 541-5089 Silver 44-4152 12-4636
503191559,
742
180mm (7.09”) x 20mm A,E 541-5004 Black 44-4152 12-4636
Grand Touring 600 ‘00 572018900 110mm (4.33) x 25mm E 541-5017 Black 44-5905 12-4638
Grand Touring 700 SE, ME ‘98-00 503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Grand Touring Sport 600, 55F ‘10-11 503190395,
1559
180mm (7.09”) x 20mm E 541-5004 Black 44-4152 12-4636
Grand Touring XTC ‘94 572035400 4.25 x .625 --- 541-5052 Black 44-4100 12-4639
503112300 5.38 x 25mm D,B 541-5006 Black 44-5905 12-4638
135mm (5.31) x 25mm D,B For Optional Colors See Chart A Page 1039
503112400 190mm (7.48) x 25mm E 541-5036 Black 44-5905 12-4638
GSX 380F, 550F ‘05 503190801 180mm (7.09”) x 25mm A 541-5098 Full Moon, Gray 44-5905 12-4638
GSX 500SS ‘04-05 503189171,
190229, 802
135mm (5.31”) x 25mm C 541-5032 Black 44-5905 12-4638
GSX 380F ‘06-08 503191316 141mm (5.55”) x 20mm B 541-5005 Black 44-4152 12-4636
503191313 141mm (5.55”) x 20mm B 541-5089 Silver 44-4152 12-4636
503190752 180mm (7.09”) x 20mm A 541-5090 Silver 44-4152 12-4636
GSX 500SS, GTX, Sport ‘06-09 503191316 141mm (5.55”) x 20mm B 541-5005 Black 44-4152 12-4636
503191313 141mm (5.55”) x 20mm B 541-5089 Silver 44-4152 12-4636
503190752 180mm (7.09”) x 20mm A 541-5090 Silver 44-4152 12-4636
503190395,
1559
180mm (7.09”) x 20mm E 541-5004 Black 44-4152 12-4636
GSX 500SS Sport ‘09 503191316 141mm (5.55”) x 20mm B 541-5005 Black 44-4152 12-4636
GSX 550F ‘06-08 503191316 141mm (5.55”) x 20mm B 541-5005 Black 44-4152 12-4636
503191313 141mm (5.55”) x 20mm B 541-5089 Silver 44-4152 12-4636
503190752 180mm (7.09”) x 20mm A 541-5090 Silver 44-4152 12-4636
GSX 550F ‘08 503190342 180mm (7.09”) x 20mm A 541-5002 Yellow 44-4152 12-4636
503191312 141mm (5.55”) x 20mm A 541-5003 Yellow 44-4152 12-4636

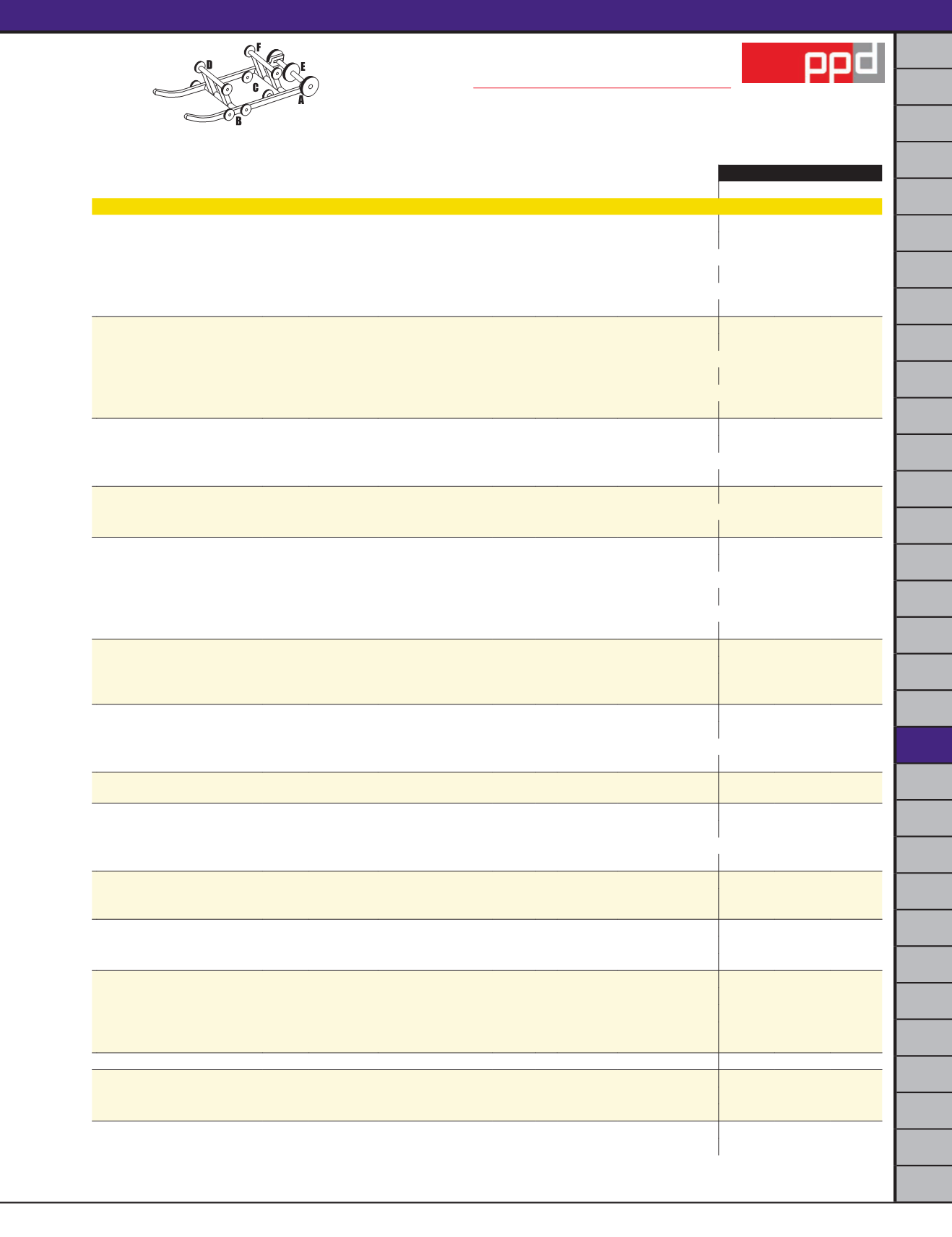

IDLER WHEEL APPLICATIONS
This diagram is for reference only.
Please confirm proper location and size before ordering.
REAR SUSPENSION
