IDLER WHEEL APPLICATIONS

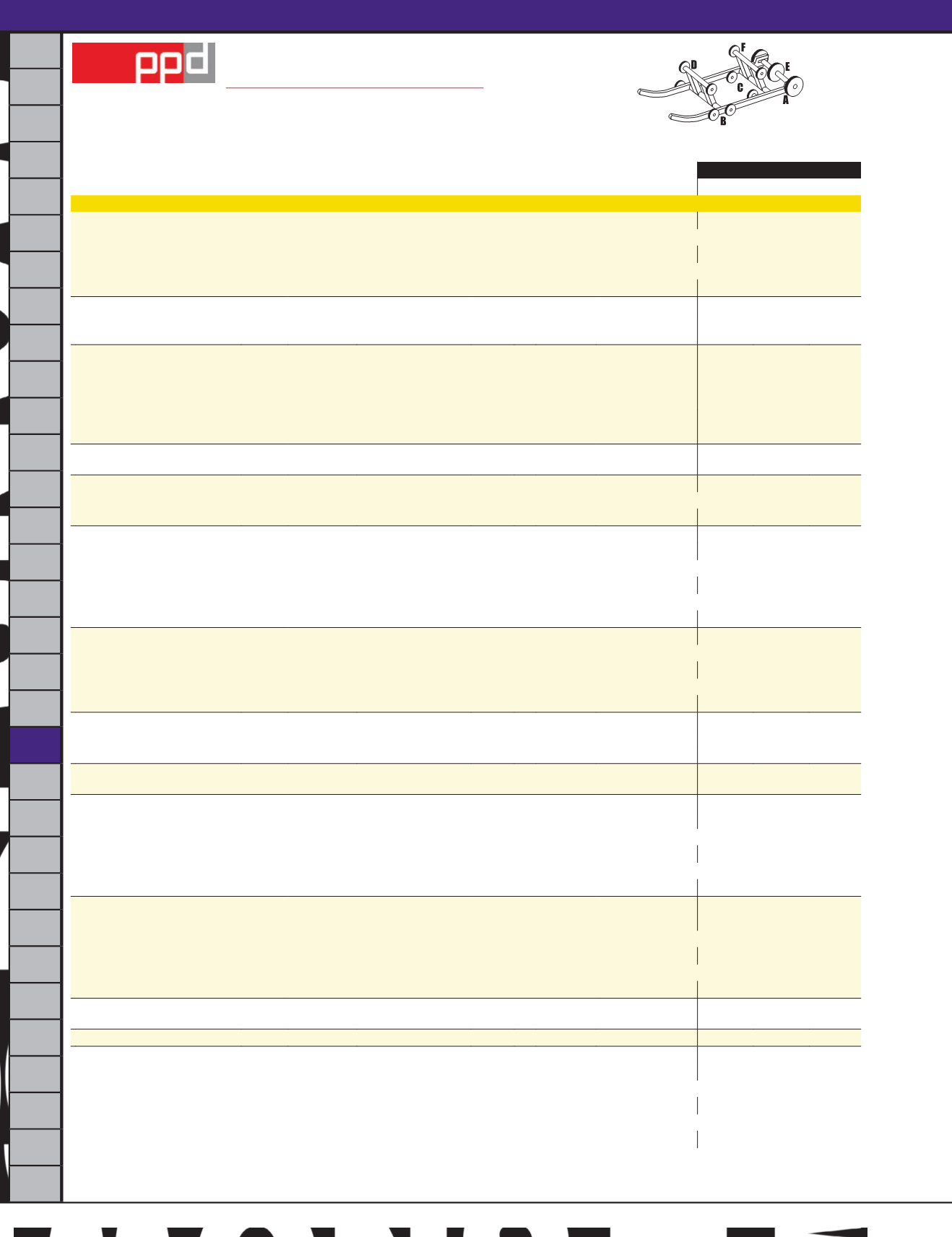

This diagram is for reference only.
Please confirm proper location and size before ordering.
*For this application the bushing inserts must be removed.
Continued on the next page
Replacement
Application Year Replaces O.D. x I.D. Pos. WPS# Color Bearing Snap Ring Bushing
SKI-DOO (cont’d...)
Mach Z, Tech Plus ‘01-03 503112300 5.38 x 25mm B 541-5006 Black 44-5905 12-4638
135mm (5.31) x 25mm B For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Mach Z SDI 1000 ‘05-08 503190752 180mm (7.09”) x 20mm A 541-5090 Silver 44-4152 12-4636
503190395,
1559
180mm (7.09”) x 20mm E 541-5004 Black 44-4152 12-4636
Mach Z SDI 1000 Adrenaline, X ‘06-08 503190752 180mm (7.09”) x 20mm A 541-5090 Silver 44-4152 12-4636
503190342 180mm (7.09”) x 20mm A 541-5002 Yellow 44-4152 12-4636
503190395,
1559
180mm (7.09”) x 20mm E 541-5004 Black 44-4152 12-4636
503191312 141mm (5.55”) x 20mm B 541-5003 Yellow 44-4152 12-4636
503191316 141mm (5.55”) x 20mm B 541-5005 Black 44-4152 12-4636
Mini Z ‘05-06 5031899094,
190815
139mm (5.46”) x 25mm A 541-5087 Yellow 44-5905 12-4638
MX ‘94-95 503112300 5.38 x 25mm B 541-5006 Black 44-5905 12-4638
MX Z ‘94-95 135mm (5.31) x 25mm B For Optional Colors See Chart A Page 1039
503112400 190mm (7.48) x 25mm A 541-5036 Black 44-5905 12-4638
MX Z 380F ‘01 572043500 101mm (3.98) x .625” F 541-5018 Black 44-4100 12-4639
MX Z 500F ‘01 503112300 5.38 x 25mm B 541-5006 Black 44-5905 12-4638
135mm (5.31) x 25mm B For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
MX Z 380F ‘02-03 503112300 5.38 x 25mm B 541-5006 Black 44-5905 12-4638
MX Z 500F, 550F ‘02-03 135mm (5.31) x 25mm B For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
MX Z 380, 550F ‘06-08 503191312 141mm (5.55”) x 20mm B,C 541-5003 Yellow 44-4152 12-4636
MX Z 550F (all) ‘08-12 503191316 141mm (5.55”) x 20mm B,C 541-5005 Black 44-4152 12-4636
MX Z 550 X ‘06-09 503190342 180mm (7.09”) x 20mm A,E 541-5002 Yellow 44-4152 12-4636
MX Z 400, LC ‘99-02 503189171,
190229, 802
135mm (5.31”) x 25mm C 541-5032 Black 44-5905 12-4638
MX Z 440 ‘96 572018900 110mm (4.33) x 25mm E 541-5017 Black 44-5905 12-4638
MX Z 583 ‘96 503112300 5.38 x 25mm B 541-5006 Black 44-5905 12-4638
MX Z 670 ‘96 135mm (5.31) x 25mm B For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
MX Z 440F ‘97-01 572043500 101mm (3.98) x .625” E 541-5018 Black 44-4100 12-4639
503112300 5.38 x 25mm B 541-5006 Black 44-5905 12-4638
135mm (5.31) x 25mm B For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
MX Z 440, Racing ‘03 503189171,
190229, 802
135mm (5.31”) x 25mm C 541-5032 Black 44-5905 12-4638
MX Z 440, X Racing ‘06-08 503191316 141mm (5.55”) x 20mm B 541-5005 Black 44-4152 12-4636
MX Z 440LC ‘97 572018900 110mm (4.33) x 25mm E 541-5017 Black 44-5905 12-4638
MX Z 500 ‘98-99 503112300 5.38 x 25mm B 541-5006 Black 44-5905 12-4638
MX Z 583 ‘97-98 135mm (5.31) x 25mm B For Optional Colors See Chart A Page 1039
MX Z 670, HO, T.H. ‘97-98 503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
MX Zx 440 ‘97 165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
REAR SUSPENSION
