IDLER WHEEL APPLICATIONS

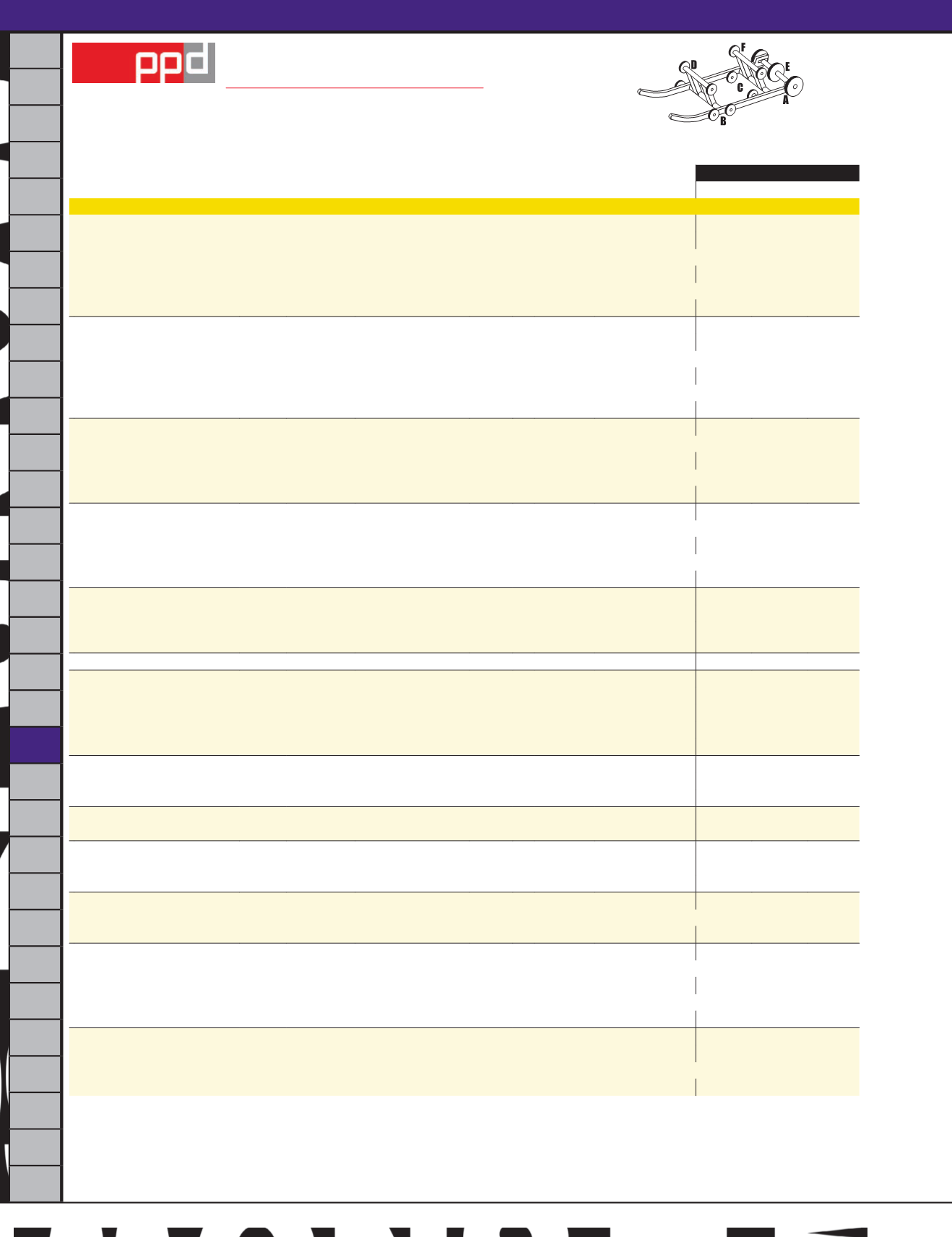

This diagram is for reference only.
Please confirm proper location and size before ordering.
*For this application the bushing inserts must be removed.
Continued on the next page
Replacement
Application Year Replaces O.D. x I.D. Pos. WPS# Color Bearing Snap Ring Bushing
SKI-DOO (cont’d ... )
Formula Z ‘97 572018900 110mm (4.33) x 25mm F 541-5017 Black 44-5905 12-4638
503112300 5.38 x 25mm B,C 541-5006 Black 44-5905 12-4638
135mm (5.31) x 25mm B,C For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Formula Z 500, 583 ‘98-99 572018900 110mm (4.33) x 25mm F 541-5017 Black 44-5905 12-4638
503112300 5.38 x 25mm B,C 541-5006 Black 44-5905 12-4638
135mm (5.31) x 25mm B,C For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Formula Z 600, 700 ‘00 503112300 5.38 x 25mm B,C 541-5006 Black 44-5905 12-4638
135mm (5.31) x 25mm B,C For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Formula Z 670 ‘98-99 503112300 5.38 x 25mm B,C 541-5006 Black 44-5905 12-4638
135mm (5.31) x 25mm B,C For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Freeride 800 RETEC XP ‘12-13 503191316 141mm (5.55”) x 20mm B 541-5005 Black 44-4152 12-4636
503191313 141mm (5.55”) x 20mm B 541-5089 Silver 44-4152 12-4636
503191559,
742
180mm (7.09”) x 20mm A,E 541-5004 Black 44-4152 12-4636
Freeride 800R XP ‘13 503191742 180mm (7.09”) x 20mm A,E 541-5004 Black 44-4152 12-4636
Freestyle 300F ‘06-08 503190342 180mm (7.09”) x 20mm A 541-5002 Yellow 44-4152 12-4636
503190752 180mm (7.09”) x 20mm A 541-5090 Silver 44-4152 12-4636
503191316 141mm (5.55”) x 20mm B 541-5005 Black 44-4152 12-4636
503191312 141mm (5.55”) x 20mm B 541-5003 Yellow 44-4152 12-4636
503191313 141mm (5.55”) x 20mm B 541-5089 Silver 44-4152 12-4636
Freestyle Session 300F ‘07-08 503191316 141mm (5.55”) x 20mm B 541-5005 Black 44-4152 12-4636
503191313 141mm (5.55”) x 20mm B 541-5089 Silver 44-4152 12-4636
503190752 180mm (7.09”) x 20mm A 541-5090 Silver 44-4152 12-4636
Freestyle Back Country 550F ‘07-09 503191316 141mm (5.55”) x 20mm B 541-5005 Black 44-4152 12-4636
503191312 141mm (5.55”) x 20mm B 541-5003 Yellow 44-4152 12-4636
Freestyle Park, Session 550F ‘07-08 503191316 141mm (5.55”) x 20mm B 541-5005 Black 44-4152 12-4636
503191313 141mm (5.55”) x 20mm B 541-5089 Silver 44-4152 12-4636
503190752 180mm (7.09”) x 20mm A 541-5090 Silver 44-4152 12-4636
Grand Touring, SE ‘94 503112300 5.38 x 25mm B,C 541-5006 Black 44-5905 12-4638
135mm (5.31) x 25mm B,C For Optional Colors See Chart A Page 1039
503112400 190mm (7.48) x 25mm A 541-5036 Black 44-5905 12-4638
Grand Touring 380F, 500F, 550F ‘01-03 503112300 5.38 x 25mm B,C 541-5006 Black 44-5905 12-4638
135mm (5.31) x 25mm B,C For Optional Colors See Chart A Page 1039
503189374 165mm (6.50 x 25mm A 541-5086 Gray 44-5905 12-4638
165mm (6.50 x 25mm A For Optional Colors See Chart A Page 1039
503189568 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Grand Touring 470 ‘95 572043500 101mm (3.98) x .625” F 541-5018 Black 44-4100 12-4639
Grand Touring 580 ‘95 503112300 5.38 x 25mm B,C 541-5006 Black 44-5905 12-4638
Grand Touring SE ‘95 135mm (5.31) x 25mm B,C For Optional Colors See Chart A Page 1039
503112400 190mm (7.48) x 25mm A,E 541-5036 Black 44-5905 12-4638
