IDLER WHEEL APPLICATIONS

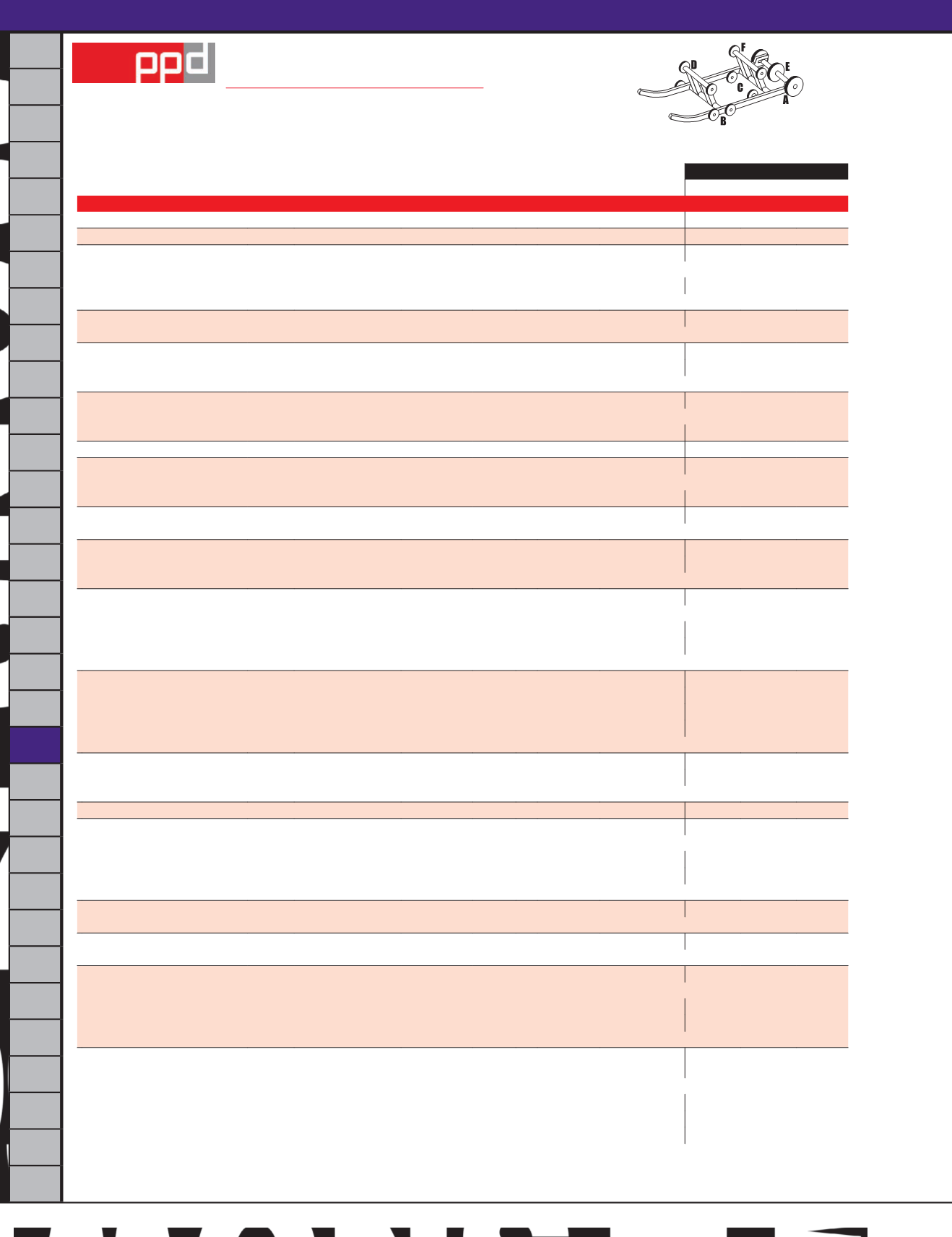

This diagram is for reference only.
Please confirm proper location and size before ordering.
Replacement
Application Year Replaces O.D. x I.D. Pos. WPS# Color Bearing Snap Ring Bushing
POLARIS (cont’d...)
600 Edge Tour, HO Fusion IQ, M-10 ‘06 1594087 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
600 HO IQ, LX, Touring ‘07-08 1594087 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
600 HO RMK ‘06 1590388-293 7.25 x 20mm A 541-5044 Red 44-4152 12-4636
600 HO Switchback ‘06 7.25 x 20mm A For Optional Colors See Chart C Page 1023
1590387-293 5.62 x 20mm B 541-5047 Red 44-4152 12-4636
5.62 x 20mm B For Optional Colors See Chart C Page 1023
600 HO Switchback ‘07 1590388-070 7.25 x 20mm A,E 541-5042 Black 44-4152 12-4636
7.25 x 20mm A,E For Optional Colors See Chart C Page 1023
600 Dragon Switchback ‘10 1590001 6.38 x 35mm F 541-5041 Black 44-4312
1590387-070 5.62 x 20mm B 541-5045 Black 44-4152 12-4636
5.62 x 20mm B For Optional Colors See Chart C Page 1023
600 HO Fusion ‘06 1590387-070 5.62 x 20mm B 541-5045 Black 44-4152 12-4636
5.62 x 20mm B For Optional Colors See Chart C Page 1023
1590001 6.38 x 35mm F 541-5041 Black 44-4312
600 Indy, SP, ES ‘14-16 1590001 6.38 x 35mm F 541-5041 Black 44-4312
600 HO IQ, LX Cleanfire ‘07 1590387-244 5.62 x 20mm B 541-5046 Silver 44-4152 12-4636
5.62 x 20mm B For Optional Colors See Chart C Page 1023
1590001 6.38 x 35mm F 541-5041 Black 44-4312
600 HO IQ Touring Cleanfire ‘07 1590387-244 5.62 x 20mm B 541-5046 Silver 44-4152 12-4636
5.62 x 20mm B For Optional Colors See Chart C Page 1023
600 Indy, SP, ES ‘13 1590001 6.38 x 35mm F 541-5041 Black 44-4312
600 IQ Shift, ES ‘10-12 1590388-070 7.25 x 20mm E 541-5042 Black 44-4152 12-4636
7.25 x 20mm A For Optional Colors See Chart C Page 1023
600 IQ Shift ‘09 1590387-070 5.62 x 20mm B 541-5045 Black 44-4152 12-4636
600 IQ, ES ‘09 5.62 x 20mm B For Optional Colors See Chart C Page 1023
1590001 6.38 x 35mm F 541-5041 Black 44-4312
1590388-070 7.25 x 20mm A,E 541-5042 Black 44-4152 12-4636
7.25 x 20mm A For Optional Colors See Chart C Page 1023
600 IQ LXT ‘11-15 1590001 6.38 x 35mm F 541-5041 Black 44-4312
600 IQ Touring ‘08-10 1590388-070 6.38 x 35mm F 541-5041 Black 44-4312
600, 700 IQ Dragon, 700 IQ, 600 IQ LX ‘08 1590388-244 7.25 x 20mm E 541-5042 Black 44-4152 12-4636
7.25 x 20mm A 541-5043 Silver 44-4152 12-4636
7.25 x 20mm A For Optional Colors See Chart C Page 1023
600, 700 IQ Dragon, LX ‘08 1594087 7.25 x 20mm E 541-5042 Black 44-4152 12-4636
7.25 x 20mm A 541-5043 Silver 44-4152 12-4636
7.25 x 20mm A For Optional Colors See Chart C Page 1023
Indy 600 Pro X, X2 ‘03-04 1594087 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Indy 600 RMK ‘99 1594082-293 5.35 x .750 B,C 541-5025 Indy Red 44-5905 12-4638 12-4654
5.35 x .750 B,C For Optional Colors See Chart C Page 1023
1543023 5.63 x .625 F * 541-5037 Black 44-5905 12-4638 12-4655
1544083-293 6.38 x 20mm A 541-5027 Indy Red 44-4152 12-4636
6.38 x 20mm A For Optional Colors See Chart C Page 1023
Indy 600 RMK ‘00-01 1544083-293 6.38 x 20mm A 541-5027 Indy Red 44-4152 12-4636
6.38 x 20mm A For Optional Colors See Chart C Page 1023
600 RMK ‘07 1590388-070 7.25 x 20mm A,E 541-5042 Black 44-4152 12-4636
7.25 x 20mm A For Optional Colors See Chart C Page 1023
600 Shift, ES ‘11 1590387-070 5.62 x 20mm B 541-5045 Black 44-4152 12-4636
600 Switchback, Dragon ‘09 5.62 x 20mm B For Optional Colors See Chart C Page 1023
600 Switchback, ES ‘11 1590001 6.38 x 35mm F 541-5041 Black 44-4312
600 Switchback, ES, LX ‘10 1590388-070 7.25 x 20mm A,E 541-5042 Black 44-4152 12-4636
7.25 x 20mm A For Optional Colors See Chart C Page 1023
600, 700 Switchback, Dragon
Switchback
‘08 1590387-070 5.62 x 20mm B 541-5045 Black 44-4152 12-4636
5.62 x 20mm B For Optional Colors See Chart C Page 1023
1590001 6.38 x 35mm F 541-5041 Black 44-4312
1590388-070 7.25 x 20mm E 541-5042 Black 44-4152 12-4636
1590388-244 7.25 x 20mm A 541-5043 Silver 44-4152 12-4636
7.25 x 20mm A For Optional Colors See Chart C Page 1023
*For this application the bushing inserts must be removed.
Continued on the next page
