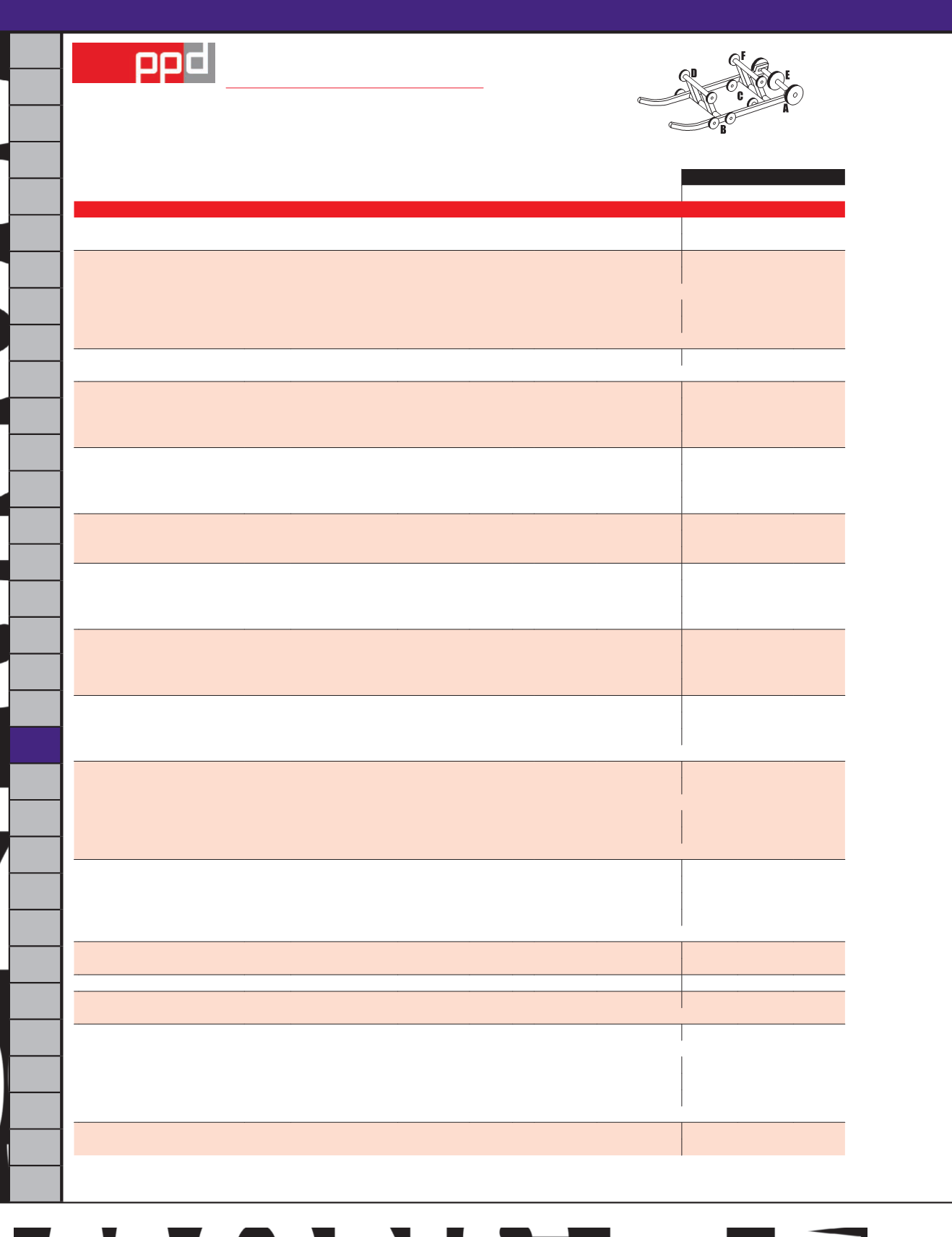

IDLER WHEEL APPLICATIONS
This diagram is for reference only.
Please confirm proper location and size before ordering.
Replacement
Application Year Replaces O.D. x I.D. Pos. WPS# Color Bearing Snap Ring Bushing
POLARIS (cont’d...)
Indy 440 XCR ‘97-98 1543018 5.38 x .750 B,C 541-5007 Black 44-5905 12-4638 12-4641
1543023 5.63 x .625 F * 541-5037 Black 44-5905 12-4638 12-4655
Indy 440 XCR ‘99 1543018 5.38 x .750 B,C 541-5007 Black 44-5905 12-4638 12-4641
1594082-293 5.35 x .750 B,C 541-5025 Indy Red 44-5905 12-4638 12-4654
5.35 x .750 B,C For Optional Colors See Chart C Page 1023
1543023 5.63 x .625 F * 541-5037 Black 44-5905 12-4638 12-4655
1544083-293 6.38 x 20mm A 541-5027 Indy Red 44-4152 12-4636
6.38 x 20mm A For Optional Colors See Chart C Page 1023
Indy 440 XCR SP ‘99 1544083-293 6.38 x 20mm A 541-5027 Indy Red 44-4152 12-4636
6.38 x 20mm A For Optional Colors See Chart C Page 1023
Indy 500, SKS ‘89 1543017 4.62 x .625 F 541-5050 Black 44-4100 12-4639
Indy 500 Classic ‘89 1543018 5.38 x .750 B,C 541-5007 Black 44-5905 12-4638 12-4641
1594032 6.38 x 25mm A 541-5010 Silver 44-5905 12-4638
1594021 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Indy 500, SKS, SP ‘90-92 1543018 5.38 x .750 B,C 541-5007 Black 44-5905 12-4638 12-4641
Indy 500 Classic ‘90-92 1543022 5.62 x .625 F 541-5049 Black 44-4100 12-4639
1594032 6.38 x 25mm A 541-5010 Silver 44-5905 12-4638
1594021 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Indy 500 ‘95 1543018 5.38 x .750 B,C 541-5007 Black 44-5905 12-4638 12-4641
Indy 500 Classic, Touring ‘93 1543023 5.63 x .625 F * 541-5037 Black 44-5905 12-4638 12-4655
1594021 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Indy 500, RMK, SKS ‘96 1543018 5.38 x .750 B,C 541-5007 Black 44-5905 12-4638 12-4641
Indy 500 Classic, Touring ‘94-96 1543023 5.63 x .625 F * 541-5037 Black 44-5905 12-4638 12-4655
Indy 500 EFI, RMK, SKS ‘93-96 1594032 6.38 x 25mm A 541-5010 Silver 44-5905 12-4638
Indy 500 SPX, XLT ‘92 1594021 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
Indy 500, RMK, SKS ‘97-98 1543018 5.38 x .750 B,C 541-5007 Black 44-5905 12-4638 12-4641
Indy 500 Classic ‘97-98 1543023 5.63 x .625 F * 541-5037 Black 44-5905 12-4638 12-4655
Indy 500 Classic Touring ‘97-98 1594056-070 6.38 x 20mm A 541-5016 Black 44-4152 12-4636
1544083-216 6.38 x 20mm E 541-5082 Screaming Yellow 44-4152 12-4636
Indy 500 ‘99 1543018 5.38 x .750 B,C 541-5007 Black 44-5905 12-4638 12-4641
Indy 500 Classic ‘99 1543023 5.63 x .625 F * 541-5037 Black 44-5905 12-4638 12-4655
Indy 500 Classic Touring ‘01 1544083-293 6.38 x 20mm A 541-5027 Indy Red 44-4152 12-4636
Indy 500 RMK ‘99 6.38 x 20mm A For Optional Colors See Chart C Page 1023
Indy 500 ‘00 1543018 5.38 x .750 B,C 541-5007 Black 44-5905 12-4638 12-4641
Indy 500 Classic ‘00-01 1594082-293 5.35 x .750 B,C 541-5025 Indy Red 44-5905 12-4638 12-4654
Indy 500 Classic Touring ‘00 5.35 x .750 B,C For Optional Colors See Chart C Page 1023
1543023 5.63 x .625 F * 541-5037 Black 44-5905 12-4638 12-4655
1544083-293 6.38 x 20mm A 541-5027 Indy Red 44-4152 12-4636
6.38 x 20mm A For Optional Colors See Chart C Page 1023
Indy 500 Classic Touring ‘99 1543018 5.38 x .750 B,C 541-5007 Black 44-5905 12-4638 12-4641
1543023 5.63 x .625 F * 541-5037 Black 44-5905 12-4638 12-4655
1594056-070 6.38 x 20mm --- 541-5016 Black 44-4152 12-4636
1544083-293 6.38 x 20mm A 541-5027 Indy Red 44-4152 12-4636
6.38 x 20mm A For Optional Colors See Chart C Page 1023
Indy 500 Classic Touring ‘02 1543018 5.38 x .750 B,C 541-5007 Black 44-5905 12-4638 12-4641
1543023 5.63 x .625 F * 541-5037 Black 44-5905 12-4638 12-4655
Indy 500 Classic Touring ‘03 1543023 5.63 x .625 F * 541-5037 Black 44-5905 12-4638 12-4655
Indy 500 Classic ‘04-05 1594082-293 5.35 x .750 B,C 541-5025 Indy Red 44-5905 12-4638 12-4654
5.35 x .750 B,C For Optional Colors See Chart C Page 1023
Indy 500 Edge ‘04-05 1594082-293 5.35 x .750 B,C 541-5025 Indy Red 44-5905 12-4638 12-4654
5.35 x .750 B,C For Optional Colors See Chart C Page 1023
1541485 5.38 x .750 B 541-5007 Black 44-5905 12-4638 12-4641
1594087 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
1544083-293 6.38 x 20mm A 541-5027 Indy Red 44-4152 12-4636
6.38 x 20mm A For Optional Colors See Chart C Page 1023
500 Indy ‘06 1541485 5.38 x .750 B 541-5007 Black 44-5905 12-4638 12-4641
1594087 6.38 x .750 E 541-5001 Black 44-5905 12-4638 12-4654
*For this application the bushing inserts must be removed.
Continued on the next page
